Situated on the threshold between the urban density of Chicago and the open expanse of Lake Michigan, this Architecture Biennale Cultural Center is designed as a fluid extension of the city itself—prioritizing spatial transitions, framed views, and public accessibility. By responding to the surrounding urban context and landscape, the center creates a continuous experience where built and natural environments blend, inviting both active engagement and passive appreciation of the lakefront and skyline.

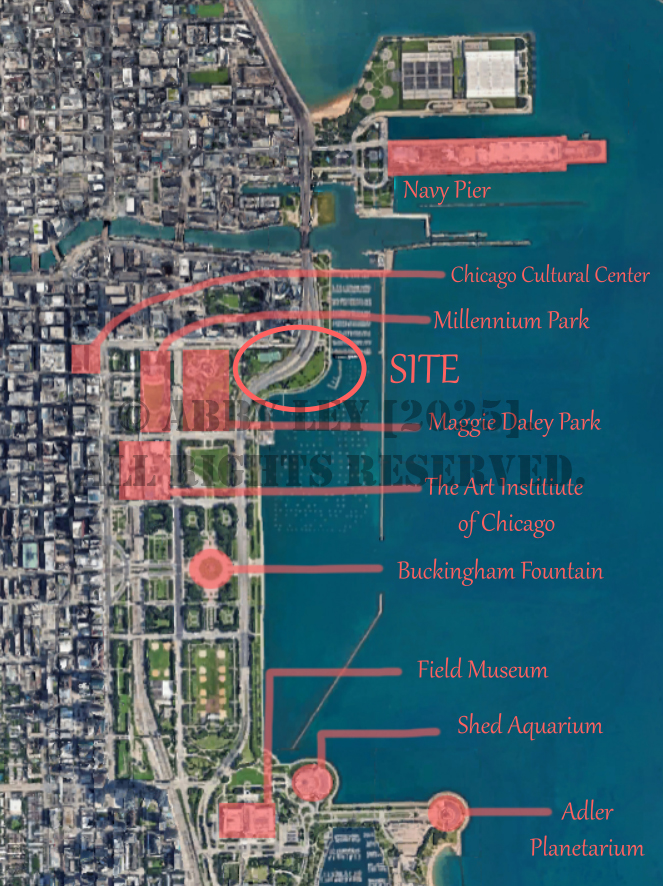

Site/City Analysis
Located at the convergence of Lake Shore Drive, the city grid, and the vastness of Lake Michigan, the Architecture Biennale Cultural Center is conceived not as a static object, but as a sequence of spaces that flow effortlessly from city to lake. Through a deliberate orchestration of spatial transitions, the design offers a unique perspective on both the skyline and the shoreline.

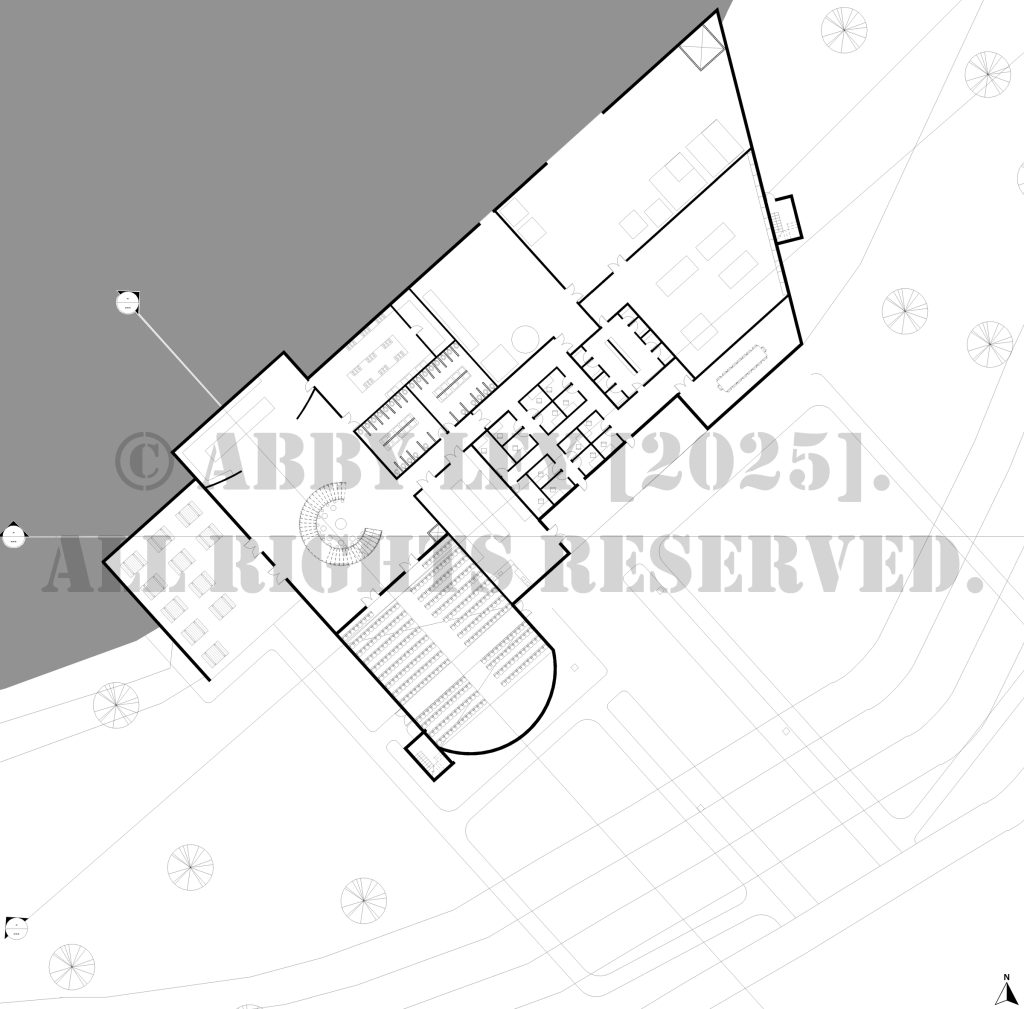

First Floor Plan
The building’s form responds to the rhythm of the city while opening toward the lake, reflecting the biennale’s mission of public engagement. Through careful attention to context, movement, and view, the center becomes not just a destination, but civic space where the community can come together and engage with one another.

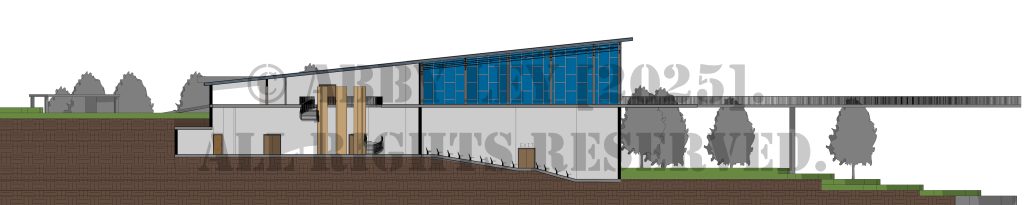

West Section
Architecture here becomes landscape, and vice versa. The center embraces openness, allowing the public to experience the site without necessarily entering the building itself. Elevated terraces, stepped platforms, and viewing corridors become gathering spaces for reflection, community, and cultural exchange, all while maintaining uninterrupted views of Chicago’s iconic skyline and the calming expanse of Lake Michigan.

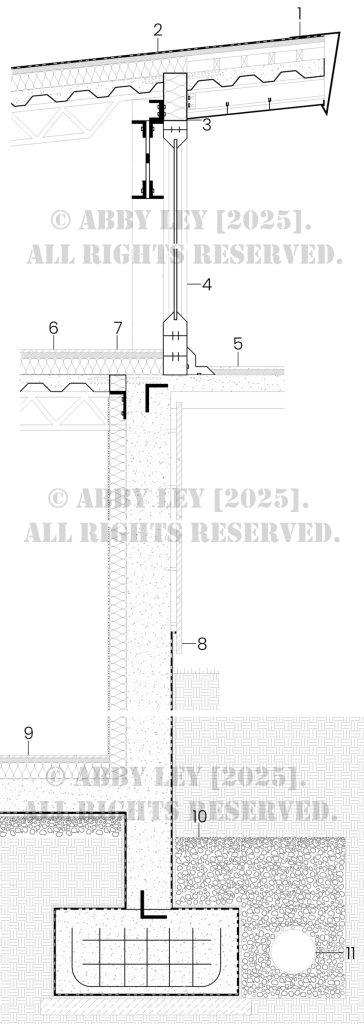

1 – Metal Cap
Water Proofing
2 in. Screed
2 in. Cement Fill
2 x 4 in. Wood Battens
6 in. Metal Decking w/ Concrete Fill
8 in. Beam
1/4 in. Steel Panels
2 – Water Proofing
6 in. Insulation
6 in. Metal Decking w/ Concrete Fill
Plastic Joist
8 in. C-Channel Beam
2.4 ft. Primary Truss connected to a 1 x 1 ft. Concrete Column
3 – Balcony Connector
4 – 9 in. Arcylic Curtain Wall System w/ 2 in. Mullions
5 – 1 in. Concrete Tiles
2 in. Screed
6 in. Concrete Slab
6 in. Beam
6 – 1 in. Stone Tiles
2 in. Screed
6 in. Insulation
6 in. Concrete Slab w/ Metal Decking
1.2 ft. Secondary Truss
7 – 1 in. Stone Tiles
2 in. Screed
6 in. Insulation
Balcony Connector supported by L-Shaped Bracket fassened into the wall
8 – 2 in. Stone Cladding
Drainage Mat
Water Proofing
1.4 ft. Concrete Load Bearing Wall
6 in. Insulation
5/8 in. Gypsum Board w/ Paint Coating
9 – 1 in. Stone Tiles
2 in. Screed
6 in. Insulation
1 ft. Concrete Slab
Water Proofing
Drainage Mat
6 in. Gravel
10 – 2 ft. Gravel
Drainage Mat
Water Proofing
2.5 ft. Concrete Footing w/ Steel Rebar
9 in. Mud Slab
11 – Drainage Pipe surrounded by Gravel
West Wall Technical Detail

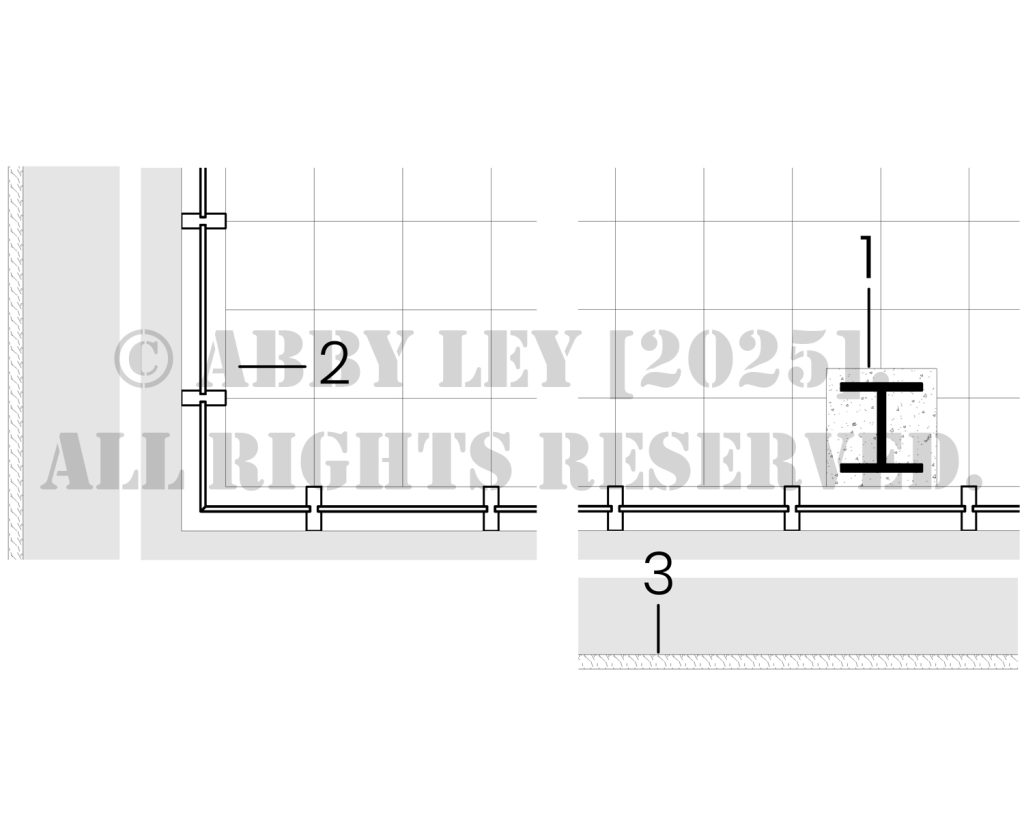

1 – Concrete Column 1 ft. x 1 ft. reinforced w/ Steel
2 x 6 in. Mullion
Concrete Floor
2 – 1 x 1 ft. Stone Tiles
Curtain Wall System
Arcylic Panels
2 in. Air Space
Double Pane Glass
2 in. Air Space
Arcylic Panels
Concrete Floor
3 – Concrete Floor
Metal Railing to Terrace
